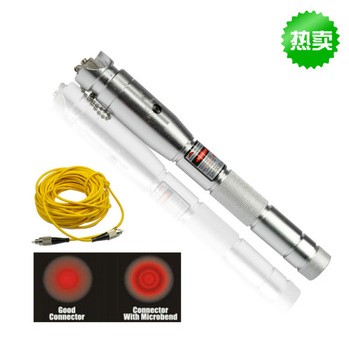

10MW 20MW Fiber Testing Tools Visual Fault Detector 30MW Black
Leather Sheath
Method of use
1. Screw the end cap from the pen, the battery will be prepared
into the pen, battery cathode to the end cap, the positive on the
pen body is positive;(note: please do not turn pen and pencil tail
into the battery)
2. Put the pen and pencil body connection installed, open the dust
cap, press the control switch one time, observe the interface has a
red light, luminous tube on at the same time;(note don't eyes were
light interface, so as not to damage the eye)
3. Press the control switch again, observe the light into a pulse
mode, the indicator light-emitting tube and out of sync pulse
light;(pulse frequency in 2-3 hz or 9 hz)
4. Press the control switch again, light source closed, no light
output, at the same time indicator light pipe out;(switch mode to:
continuous - pulse - closed - continuous cycle mode)
5. When detecting insert tested optical fiber optical interface,
press the control switch at the same time, choose the output light
work mode (continuous or pulse);
6. After use, build the dust cap, do not use for a long time,
please take out the battery, in order to avoid battery rot, damage
the light source.
Maintenance and matters needing attention
1. Laser and harmful, especially to pay attention to protect the
eyes, when laser works, avoid to irradiate the eyes with laser
directly;
2. In generally, the higher the temperature, the shorter the life
of laser, when used to avoid high temperature working environment;
3. The work of laser optical fiber head should be cleaned;
4. When used, the optical interface and the interface needs to
detect light and light pull plug;
5. Don't use the light source, would you please put dust cap to
avoid dust fall;
6. Should remove the battery when not in using;
7. Please do not remove the end cap and any part of the dust cap,
remove shall not be responsible for damage caused.Fiber Checker Fiber Tester Tools Optic Visual Fault Detector network fiber checker fiber optic visual fault detector
| Model | HCW 650-2S |
| Central wavelength | 650nm±10nm (635nm is available on request) |
| Emitter type | FP-LD |
| Output power | 5mw |
| Laser Range | ≥5km |
| Optical connector | 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC.
(Female) convertor can be provided on request |
| Operating mode | Both CW and Pulse available |
| Pulse frequency | 2Hz to 3Hz / 9Hz |
| Power supply | 2AA alkaline batteries |
| Battery | LR6 AA alkaline battery |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -40°C to 85°C |

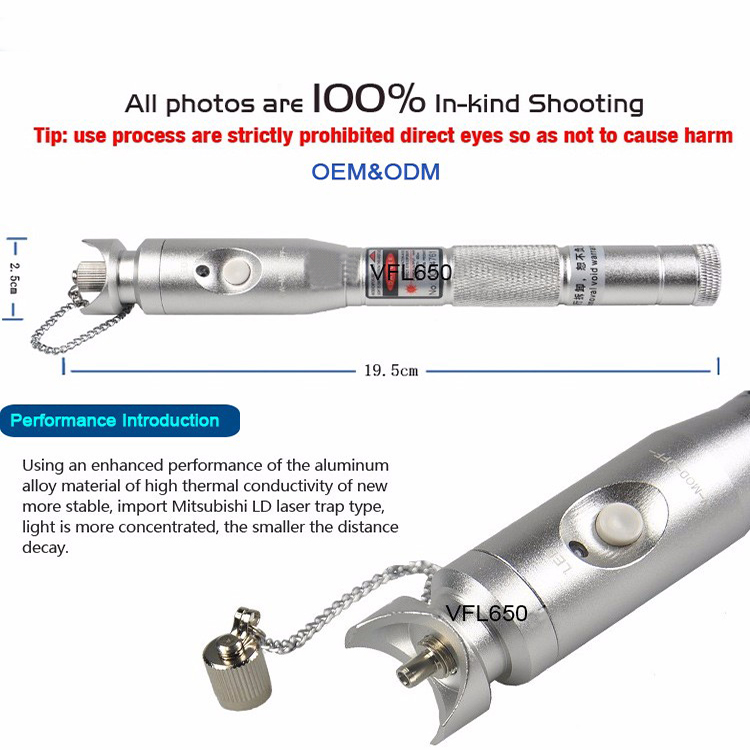

| Dimension | 25 x 195mm |
| Weight | 165g (without battery) |
