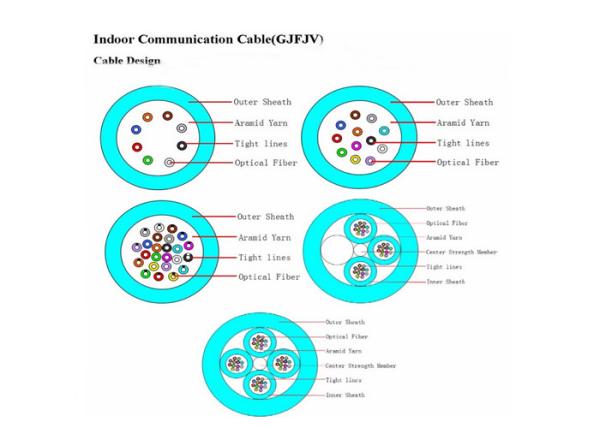

GJFJV zipcord interconnect cable use ∅900μm or ∅600μm
flame-retardant tight buffer fiber as optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as
strength member units. and the cable is completed with a figure 8
PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Characteristic:
1. Tight buffer fiber ease of stripping.
2. Tight buffer fiber have excellent flame-retardant performance.
3. Aramid yarn as strength member make cable have excellent tensile
strength.
4. Figure 8 structure jacket facilitate embranchment.
5. The jacket anti-corrosion, anti-water,-anti-ultroviolet
radiation, flame-retardant and harmless to environment, etc.
All dielectric structure protect it from electromagnetic influence
Advantages
Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property;
Two parallel steel wire/FRP strength members ensure good
performance of crush resistance toprotect the fiber.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the
installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.
Product perameter
| | 50/125μm | 62.5/125μm | G652 | G655 |
| Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km | | |
| @1300nm | ≤1.5dB/km | ≤1.5 dB/km | | |
| @1310nm | | | ≤0.45Db/km | ≤0.50Db/km |
| @1550nm | | | ≤0.30Db/km | ≤0.50Db/km |
| Bandwidth(Class A) | @850nm | ≥500Mhz·km | ≥200Mhz·km | | |
| @1300nm | ≥1000Mhz·km | ≥600Mhz·km | | |
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | | |
| Cable Cut-off Wavelength λcc | | | ≤1260nm | ≤1480nm |
Attenuation at temperature cycling α(-20°C~+85°C)
| @1300nm | ≤0.25dB/km | ≤0.25dB/km | | |
| @1550nm | | | ≤0.10dB/km | ≤0.10dB/km |
Technical Parameters
| Fiber count | | Cable | Tensile Strength | Crush Resistance | Bending Radius |
| Cable Diameter | weight | Long/short term | Long/short term | Static/Dynamic |
| mm | kg/km | N | N/100mm | mm |
| 1 | (2.0±0.2)*(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)*(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)*(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)*(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
