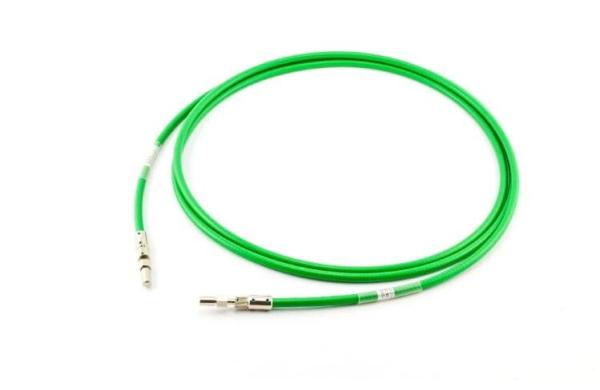

D80 Fiber Cables High-Power Laser Delivery Different Fiber-core Diameters H200E H300E H400E H600F

D80 Fiber Cables High-Power Laser Delivery Different Fiber-core
Diameters H200E H300E H400E H600F
SpecificationParameter
Product NumberH200E H300E H400E H600F
Core Diameter(μm)200 300 400 600
Cladding Diameter(um)500 500 500 750
Coating Diameter(um)780 780 780 960
Jacket(um)1300 1300 1300 1700
Core MaterialHigh purity SiO2(Low-OH)
Clad MaterialFluorine doped high purity SiO2
Jacket MaterialPolyamide
Core NA0.2
First Cladding NANA0.37
Operating Wavelength(nm)400-2200
Length(m)1-120M(Can be customized)

D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200
microns to 800 microns
(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a
crucial role in the coupling of high-power.
In principle, Hicorpwell D80 fiber cables use step-index
double-clad fibers and ferrules of good heat-conducting copper
alloys
for laser transmission.
For better protection, it introduces a sapphire and air gap into
the D80 fiber connectors so that the D80 fiber cables
can sustain laser power up to hundreds of watts in a single fiber
with more than 90% transmission efficiency
depending on the fiber core diameters and laser specifications.
It’s an excellent choice for fiber-coupled laser systems in
wavelength ranges from visible to near infrared
(VIS-NIR, typically 400-2400 nm), such as high-power semiconductor
lasers, solid-state lasers, and fiber lasers.
Areas of application include high power laser transmission, laser
welding, laser cutting, and so on.
